Mastering Precision: How Drop-Counting Thinner-to-Paint Ratios Elevate Scale Modelling to Professional Levels

Precision in Practice: The Definitive Advantage of Drop-Counting Thinner to Paint Ratios for Scale Models

In the world of scale modelling, achieving professional results isn’t just about skillful hand-painting or mastering airbrush techniques—it’s also about the science behind your materials. One method that has proven indispensable is drop-counting when thinning paint. This approach is not only precise but also creates a replicable, data-driven foundation for every project you undertake.

---

The Science Behind Drop-Counting

Drop-counting involves measuring both your paint and your thinner in drops. Because each drop represents a consistent volume, this method provides an exact ratio, ensuring that every mixture is uniform. For example, if your desired mixture is 10% thinner, knowing that 1 drop of thinner per 9 drops of paint produces a perfect ratio, gives you a repeatable formula that yields consistent results.

This precision eliminates the guesswork that comes with traditional, haphazard thinning practices. Instead of relying on “best guesstimates,” you can confidently mix your paints, knowing exactly what the final consistency will be. Such control is crucial when using airbrushes, where even slight variations in paint viscosity can affect spray patterns and final finish.

---

Creating a Base Data Set for Future Predictability

One of the most compelling reasons to adopt drop-counting is the development of a base data set for your work. Every time you prepare a mixture, record the exact ratio. Over time, these records become invaluable. You can track how different ratios affect the performance of your paint during application, drying time, and final finish. With this data:

• Predictability: You’ll be able to predict how your paint behaves in various conditions. For instance, if you notice that a 5% thinner mix produces a smoother finish on a particular surface, you can reproduce that effect reliably in future projects.
• Troubleshooting: When things go awry—perhaps your airbrush isn’t spraying correctly or the finish appears too heavy—you have a clear reference point. The data lets you backtrack to see if a miscalculation in your drop count could be the culprit.
• Optimization: Continuous data collection allows you to fine-tune your recipes. If you’re working with a new type of paint or trying to adapt to different environmental conditions, you’ll have a baseline from which to adjust your mixtures, making incremental improvements until you achieve perfection.

---

Repeatability: The Key to Professionalism

Professional scale modelers understand that repeatability is at the heart of excellence. Without a systematic approach, each project becomes a trial-and-error experiment, leaving room for inconsistency and disappointment. Drop-counting not only ensures that you get the same mixture every time, but it also empowers you to recreate that consistency across different projects and over extended periods.

Keeping a written record of your mixtures turns your creative process into a disciplined craft. When you note down your drop counts for each project, you build a comprehensive guide that can serve as a reference for future work. This methodical approach is essential not just for individual projects, but for establishing a professional workflow that others can rely on.

---

Harmonizing Art and Science

Artistry in scale modelling is not solely about intuition; it’s also about the precise application of scientific principles. Drop-counting represents a bridge between creativity and technical accuracy. By adhering to a disciplined method, you honor both the aesthetic and practical aspects of the craft. This ensures that each model is not only a work of art but also a testament to the methodical, professional processes behind its creation.

The practice of drop-counting is a commitment to excellence. It demands attention to detail, encourages consistency, and fosters a mindset where every drop counts—literally. It’s a small investment of effort that pays enormous dividends in the quality and repeatability of your work.

---

Equating Drops to Milliliters

While drops are used as a convenient volume measure, it’s useful to understand their approximate volume in milliliters (mL). A typical drop from a standard dropper is about 0.05 mL in volume, though this can vary based on the dropper design and the liquid’s viscosity. For practical purposes, you can assume that roughly 20 drops equal 1 mL, providing a convenient conversion factor when formulating mixtures or adjusting proportions.

---

Creating a Thinner-to-Paint Mixture Ratio by Drop-Counting

When creating a thinner-to-paint mixture by counting drops, the goal is to achieve the desired percentage of thinner in the final mix. Here are the minimum whole-number drop ratios for various percentages, where the percentage is defined as:

\text{% Thinner} = \frac{\text{drops thinner}}{\text{drops thinner} + \text{drops paint}} \times 100

Using this method:

• 5% Thinner:
  1 drop thinner + 19 drops paint (1:19 ratio)
  11+19=120=5%\frac{1}{1+19} = \frac{1}{20} = 5\%
• 10% Thinner:
  1 drop thinner + 9 drops paint (1:9 ratio)
  11+9=110=10%\frac{1}{1+9} = \frac{1}{10} = 10\%
• 15% Thinner:
  3 drops thinner + 17 drops paint (3:17 ratio)
  33+17=320=15%\frac{3}{3+17} = \frac{3}{20} = 15\%
• 25% Thinner:
  1 drop thinner + 3 drops paint (1:3 ratio)
  11+3=14=25%\frac{1}{1+3} = \frac{1}{4} = 25\%
• 30% Thinner:
  3 drops thinner + 7 drops paint (3:7 ratio)
  33+7=310=30%\frac{3}{3+7} = \frac{3}{10} = 30\%
• 40% Thinner:
  2 drops thinner + 3 drops paint (2:3 ratio)
  22+3=25=40%\frac{2}{2+3} = \frac{2}{5} = 40\%
• 50% Thinner:
  1 drop thinner + 1 drop paint (1:1 ratio)
  11+1=12=50%\frac{1}{1+1} = \frac{1}{2} = 50\%
• 60% Thinner:
  3 drops thinner + 2 drops paint (3:2 ratio)
  33+2=35=60%\frac{3}{3+2} = \frac{3}{5} = 60\%
• 70% Thinner:
  7 drops thinner + 3 drops paint (7:3 ratio)
  77+3=710=70%\frac{7}{7+3} = \frac{7}{10} = 70\%
• 80% Thinner:
  4 drops thinner + 1 drop paint (4:1 ratio)
  44+1=45=80%\frac{4}{4+1} = \frac{4}{5} = 80\%
• 90% Thinner:
  9 drops thinner + 1 drop paint (9:1 ratio)
  99+1=910=90%\frac{9}{9+1} = \frac{9}{10} = 90\%

These ratios ensure that you achieve consistent, repeatable mixtures—an essential step toward professional-quality results in scale modelling.

Footnote:
The conversion of 20 drops to 1 mL is based on a specific dropper size—about 0.05 mL in volume; however, drop sizes can vary between devices. The key to achieving consistent results is ensuring that the drops are uniform throughout the process, regardless of their absolute volume.

---

Experimentation: Perfecting Your Airbrush Technique

While these ratios provide an excellent starting point, every project and material can respond differently, especially when working with delicate substrates like scale model styrene. Experimentation on test styrene pieces is essential to fine-tune the thinner-to-paint ratio to meet your specific airbrushing requirements. Here’s why:

• Customized Consistency:
  Each paint formulation may behave differently depending on its inherent viscosity and the environmental conditions during application. Testing on scrap styrene allows you to see firsthand how the mixture atomizes, flows, and adheres.
• Technique Optimization:
  Airbrushing is as much an art as it is a science. By experimenting with various ratios on test pieces, you can determine the optimal mix that ensures smooth coverage, minimal overspray, and effective drying. This process helps you adjust the ratio to your airbrush’s performance and your desired finish.
• Troubleshooting:
  If you experience issues like clogging, uneven spray patterns, or excessive run-off, a controlled test environment will enable you to isolate and adjust the thinner-to-paint ratio. This methodical approach helps identify whether the problem is due to an overly thin mixture or if the ratio needs further tweaking for your specific technique.
• Data-Driven Adjustments:
  Maintaining a written record of each test—detailing the drop count, the observed results, and any modifications—creates a valuable data set. Over time, this record becomes a reliable resource that you can refer to when replicating successful techniques or troubleshooting future projects.

---

Drop-Counter’s Dilution Ratio Reference Table

Below is a printable workbench reference table detailing the drop-count ratios for various thinner-to-paint mixtures:

Thinner %	Thinner (drops)	Paint (drops)	Total Drops	Ratio (Thinner:Paint)
5%	1	19	20	1 : 19
10%	1	9	10	1 : 9
15%	3	17	20	3 : 17
25%	1	3	4	1 : 3
30%	3	7	10	3 : 7
40%	2	3	5	2 : 3
50%	1	1	2	1 : 1
60%	3	2	5	3 : 2
70%	7	3	10	7 : 3
80%	4	1	5	4 : 1
90%	9	1	10	9 : 1

Simply print this table for a quick, reliable reference at your workbench. Each ratio ensures you’re using the minimum number of drops to achieve the desired thinner-to-paint percentage, which is essential for repeatability and professional results in scale modeling.

---

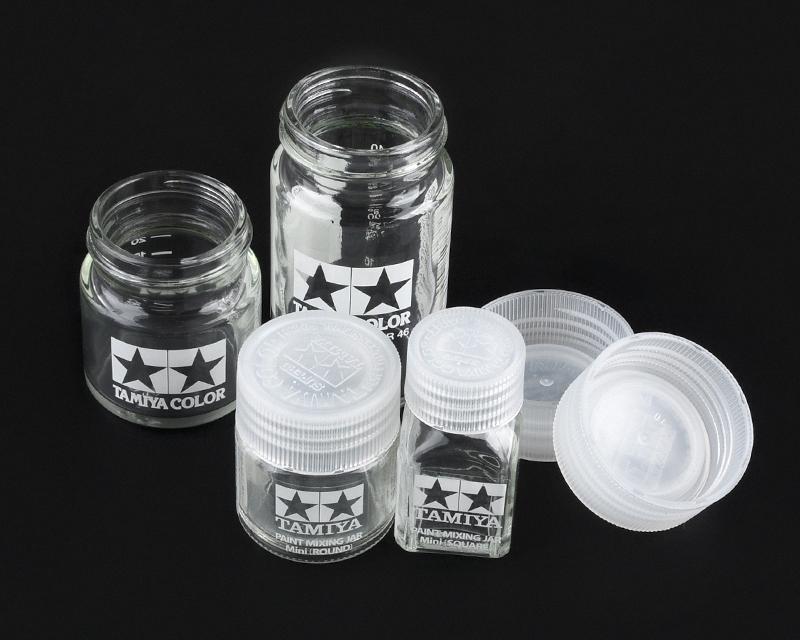

Utilizing Small Graduated Lab Beakers and Tamiya Graduated Mixing Jars

When it comes to achieving precise thinner-to-paint ratios, using small graduated lab beakers (50 mL or less) or Tamiya Graduated Mixing Jars in 23 and 46 mL bottles can be a game changer. These tools allow for highly accurate measurement and mixing of small batches, which is especially important when drop-counting to ensure repeatability and consistency over time.

Advantages of Using Small Graduated Lab Beakers and Mixing Jars:

• Accurate Measurements:
  Graduated beakers and mixing jars are calibrated to provide precise volume measurements, ensuring that your mixtures are prepared exactly to your desired ratios. This is particularly useful when working with small batches where every drop counts.
• Efficient Batch Preparation:
  With beakers of 50 mL or less, or Tamiya’s 23 mL and 46 mL bottles, you can mix smaller quantities without waste. This efficiency is ideal for test runs, troubleshooting, and perfecting your thinning techniques before applying them to larger projects.
• Consistency and Repeatability:
  Using these tools helps maintain consistency in every batch. With clearly marked graduations, you can reproduce the same mixture every time, making it easier to track results and adjust your technique based on recorded data. This is critical for troubleshooting airbrush performance and achieving the perfect finish.
• Portable and Organized:
  Small mixing jars are portable and take up less space on your workbench. They are perfect for keeping your mixtures organized and readily accessible during a busy project session.
• Long-Term Data Collection:
  By using standardized tools, you can record your measurements and corresponding outcomes over time. This data set becomes an invaluable resource for future projects, allowing you to refine your process and ensure consistent, high-quality results.

Integrating these tools into your workflow not only streamlines the mixing process but also reinforces a disciplined approach to scale modeling. By ensuring that each drop is measured and recorded accurately, you set the stage for repeatable success in your current projects and pave the way for predictable, professional outcomes in the future.

---

Conclusion

Embracing drop-counting for thinner-to-paint ratios transforms your approach to scale modelling. It replaces guesswork with precision, creating a reliable, repeatable process that builds a robust data set over time. This data not only enhances predictability and troubleshooting during airbrushing but also lays the groundwork for continuous improvement and professional excellence.

In the competitive arena of scale modelling, where every detail matters, the systematic practice of drop-counting is a definitive step toward achieving consistently outstanding results. By merging art with science, you ensure that your models aren’t just beautiful—they’re engineered for perfection.

---
